Victron BMV-702 Battery Monitor (Retail / 9V to 90V)
Victron BMV-702 Battery Monitor (Retail / 9V to 90V) is backordered and will ship as soon as it is back in stock.

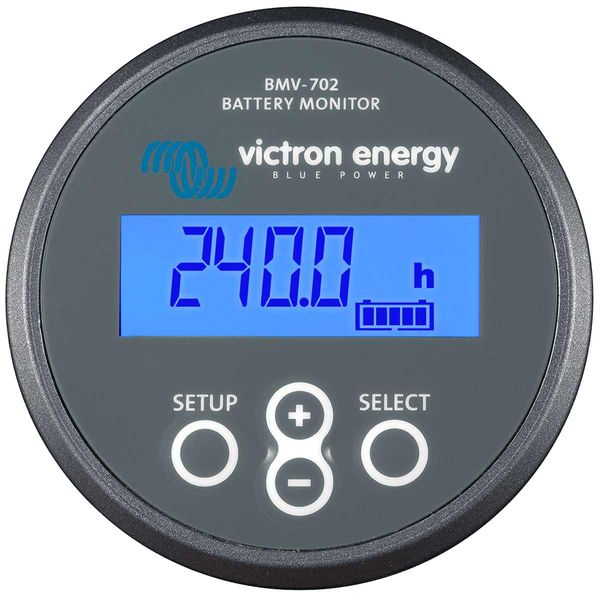

The Victron BMV-702 Battery Monitor is a high-precision battery monitoring system designed to provide accurate real-time information about battery performance and state of charge. Ideal for motorhomes, campervans, caravans, boats, off-grid solar systems, and backup power installations, the BMV-702 acts as a comprehensive battery "fuel gauge", helping users maximise battery life and optimise system performance. It continuously monitors battery voltage, current flow, power consumption, amp-hours consumed, state of charge, and remaining runtime.
Unlike basic voltmeters, the BMV-702 uses advanced software algorithms to calculate true battery state of charge by analysing current flow, battery capacity, discharge rates, and charging behaviour. It also records valuable historical performance data, helping users identify battery health issues and optimise charging cycles.
A key advantage of the BMV-702 over the standard BMV-700 is its additional auxiliary input, which can be configured to monitor a second battery voltage, battery temperature, or midpoint voltage in larger battery banks. This makes it particularly useful for dual-battery systems and series-connected battery installations.
Key Features
- High-precision battery monitoring system
- Displays battery voltage, current and power consumption
- Calculates state of charge (SOC)
- Amp-hour consumption monitoring
- Remaining runtime (“Time-To-Go”) calculation
- Historical battery performance logging
- Programmable visual and audible alarms
- Built-in programmable relay output
- Additional input for second battery voltage, battery temperature monitoring, and battery midpoint monitoring
- VE.Direct communication port
- Compatible with Victron GX devices
- Optional Bluetooth monitoring via VE.Direct Smart Dongle
- Includes 500A precision shunt
- Suitable for 12V, 24V, 48V and larger systems
- Easy installation and configuration
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | BMV-702 Battery Monitor |
| Part Number | BAM010702000R |
| Supply Voltage Range | 6.5 – 95V DC |
| Battery Capacity Range | 1 – 9999Ah |
| Included Shunt | 500A / 50mV |
| Current Measurement Resolution | 10mA (0.01A) |
| Auxiliary Input | Yes |
| Auxiliary Functions | Second Battery, Temperature, Midpoint Voltage |
| Communication Port | VE.Direct |
| Relay Output | 60V / 1A Normally Open |
| Protection Rating | IP55 |
| Operating Temperature | -40°C to +50°C |
| Front Bezel Dimensions | 69 × 69mm |
| Body Diameter | 52mm |
| Mounting Depth | 31mm |
| Display Options | Round or Square Bezel Included |
| Warranty | 5 Years |
Monitoring Functions
Battery Fuel Gauge
The BMV-702 continuously calculates state of charge (SOC), amp-hours consumed, battery voltage, charging and discharge current, power consumption (Watts), and remaining runtime, providing a far more accurate representation of battery condition than voltage readings alone.
Time-To-Go Calculation
The monitor estimates how much runtime remains based on current power consumption and battery capacity, allowing users to manage energy usage more effectively.

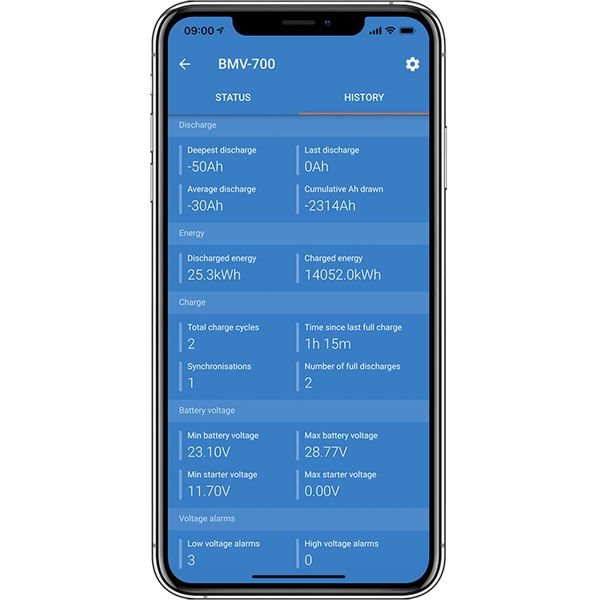

Historical Data Logging
Stores valuable historical information including deepest discharge, average discharge, number of charge cycles, total amp-hours drawn, and battery performance trends. This information can be used to assess battery health and system efficiency.
Additional Monitoring Features
Second Battery Monitoring
The auxiliary input can monitor the voltage of a starter battery or secondary battery bank, making it ideal for dual-battery motorhome and marine systems.
Battery Temperature Monitoring
When used with the optional Victron temperature sensor, the BMV-702 can display battery temperature and share this data with compatible Victron chargers and solar controllers.
Midpoint Voltage Monitoring
For larger battery banks connected in series, midpoint monitoring helps identify cell imbalance or battery faults before serious damage occurs.
Connectivity & Integration
The BMV-702 integrates seamlessly with the Victron ecosystem through its VE.Direct communication port and supports connection to Cerbo GX, Ekrano GX, Color Control GX, Venus GX, VRM Remote Monitoring Portal, VictronConnect App (with optional Bluetooth Smart Dongle), and VE.Smart Networking systems, allowing local and remote monitoring of battery performance across complete Victron installations.
What's Included
- BMV-702 Display Unit
- 500A / 50mV Precision Shunt
- 10m RJ12 Data Cable
- 2m Fused Power Cable
- Round and Square Mounting Bezels
- Mounting Hardware
- User Documentation
Ideal Applications
- Motorhomes and campervans
- Caravans
- Marine and boating systems
- Off-grid solar installations
- Backup power systems
- Renewable energy storage
- Commercial vehicle electrical systems
- Telecommunications equipment
- Battery banks with inverter systems
Why Choose the Victron BMV-702?
The Victron BMV-702 is one of the most trusted battery monitoring systems available, offering precise state-of-charge calculations, advanced historical data logging, second battery monitoring, temperature sensing capability, and seamless integration with the Victron ecosystem. Whether managing a simple leisure battery or a complex multi-battery off-grid installation, the BMV-702 provides the insight needed to maximise battery performance and longevity.
