Victron VE.Bus BMS V2 Battery Management System
Victron VE.Bus BMS V2 Battery Management System is backordered and will ship as soon as it is back in stock.

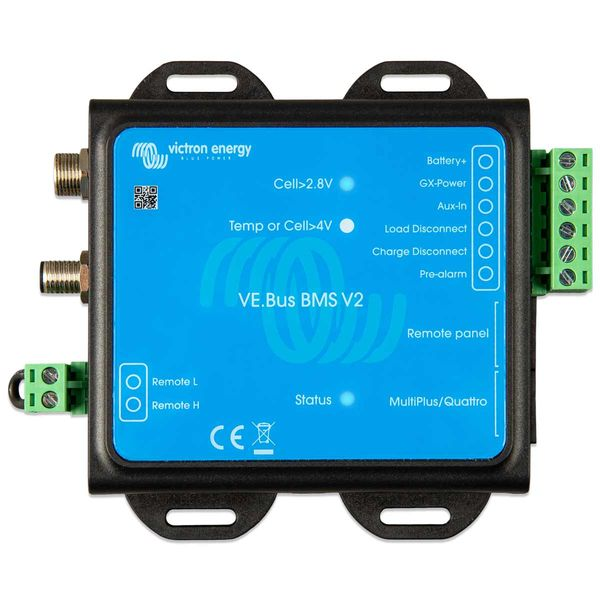

The Victron VE.Bus BMS V2 is an advanced Battery Management System (BMS) designed specifically for use with Victron Lithium Battery Smart (LiFePO4) batteries in systems incorporating Victron MultiPlus, MultiPlus-II, Quattro, and Phoenix VE.Bus inverter/chargers. Acting as the central safety and control hub of a lithium battery installation, the VE.Bus BMS V2 continuously monitors battery status and protects individual cells against over-voltage, under-voltage, over-temperature, and under-temperature conditions.
The VE.Bus BMS V2 provides intelligent control of connected chargers, loads, and inverter/chargers to prevent battery damage and maximise system reliability. It can automatically disconnect loads during low-voltage events, disable charging during unsafe operating conditions, and generate pre-alarm warnings before critical battery conditions occur.
Compared with the original VE.Bus BMS, the V2 version adds support for GX devices, VE.Bus Smart Dongles, Digital Multi Control panels, remote on/off functionality, and enhanced integration with Victron's DVCC (Distributed Voltage and Current Control) ecosystem.
Key Features
- Designed for Victron Lithium Battery Smart batteries
- Compatible with MultiPlus, MultiPlus-II, Quattro and Phoenix VE.Bus systems
- Protects against cell over-voltage, cell under-voltage, high temperature, and low temperature
- Generates battery pre-alarm warnings
- Load Disconnect output
- Charge Disconnect output
- Remote On/Off terminals
- GX device compatibility
- VE.Bus Smart Dongle compatibility
- Digital Multi Control compatibility
- Supports DVCC operation
- Allows remote monitoring and control through Victron GX systems
- Auxiliary power input and GX power output
- Firmware update capability
- Compact DIN-style installation design
- Essential component for Victron Lithium Smart battery systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | VE.Bus BMS V2 |
| Part Number | BMS300200200 |
| Compatible Batteries | Victron Lithium Battery Smart 12.8V & 25.6V |
| Supported System Voltages | 12V, 24V, 48V |
| Voltage Range | 9 – 70V DC |
| Normal Current Consumption | 10mA |
| Standby Current Consumption | 1.5mA |
| GX Power Output | 1A |
| Auxiliary Input | 1A |
| Protection Category | IP20 |
| Communication | VE.Bus |
| Remote On/Off | Yes |
| Load Disconnect Output | Yes |
| Charge Disconnect Output | Yes |
| GX Device Support | Yes |
| VE.Bus Smart Dongle Support | Yes |
| Digital Multi Control Support | Yes |
| Dimensions (H × W × D) | 24 × 95 × 106mm |
| Weight | Approx. 120g |
| Operating Temperature | -20°C to +50°C |
| Warranty | 5 Years |
Advanced System Protection
Battery Cell Protection
The VE.Bus BMS V2 continuously monitors each battery cell through the battery's integrated BTV (Balancing, Temperature and Voltage) system and automatically responds to unsafe conditions before damage can occur.
Load Disconnect Function
When battery voltage becomes critically low, the BMS can disconnect loads to prevent excessive battery discharge and protect battery health.
Charge Disconnect Function
If battery cells reach high voltage limits or unsafe temperatures, the BMS automatically disables charging sources to prevent battery damage.
Pre-Alarm Output
A dedicated pre-alarm output provides an early warning before a low-voltage shutdown occurs, allowing corrective action before the system disconnects.
GX Device Integration
The VE.Bus BMS V2 integrates seamlessly with Victron GX devices such as Cerbo GX, Color Control GX, Venus GX, and Ekrano GX, enabling DVCC (Distributed Voltage and Current Control), advanced charger control, remote monitoring via VRM Portal, centralised system management, and remote firmware updates.
Compatible Victron Products
The VE.Bus BMS V2 is designed for use with:
- Victron Lithium Battery Smart batteries
- MultiPlus inverter/chargers
- MultiPlus-II inverter/chargers
- Quattro inverter/chargers
- Phoenix VE.Bus inverters
- SmartSolar charge controllers (via GX device)
- Cerbo GX and other GX products
- VE.Bus Smart Dongle
- Digital Multi Control panels
Ideal Applications
- Motorhomes and campervans
- Caravans
- Marine and yacht electrical systems
- Off-grid solar installations
- Backup power systems
- Energy storage systems
- Mobile commercial vehicles
- Telecommunications systems
- Renewable energy storage installations
Why Choose the VE.Bus BMS V2?
The Victron VE.Bus BMS V2 is the essential safety and control component for Victron Lithium Battery Smart systems using VE.Bus inverter/chargers. By providing comprehensive battery protection, intelligent charger and load management, GX device integration, and advanced system control, it ensures maximum battery lifespan, operational safety, and seamless performance across mobile, marine, off-grid, and energy storage installations. Its enhanced connectivity and compatibility make it the preferred BMS solution for modern Victron lithium power systems.
