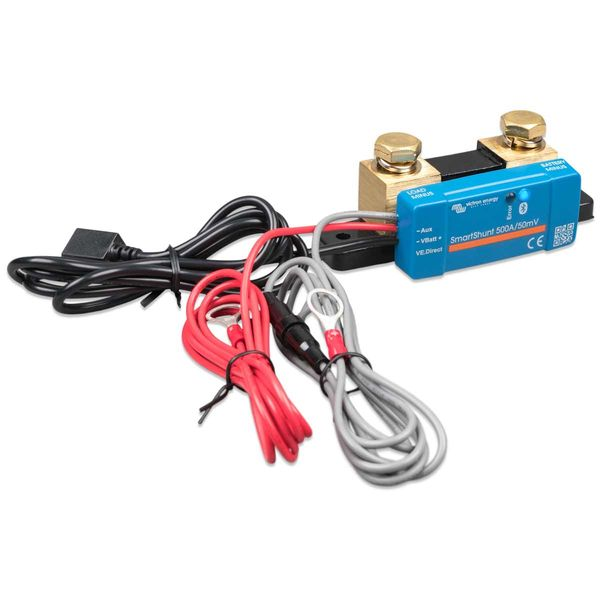

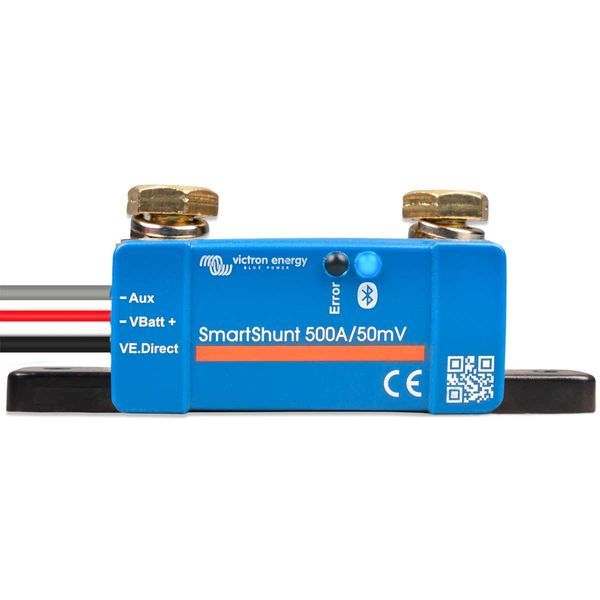

Victron SmartShunt Battery Monitor (500A / 50mV / IP65)
Victron SmartShunt Battery Monitor (500A / 50mV / IP65) is backordered and will ship as soon as it is back in stock.
The Victron SmartShunt 500A/50mV is a compact, all-in-one battery monitor that delivers highly accurate battery performance data without the need for a dedicated display. Instead, your smartphone or tablet becomes the display via the free VictronConnect app, allowing you to monitor battery status, state of charge, power consumption, historical data, and system performance in real time. It is an ideal solution for motorhomes, campervans, caravans, marine systems, off-grid solar installations, and backup power applications.
Designed as a modern alternative to the Victron BMV battery monitor range, the SmartShunt reduces wiring complexity while still providing comprehensive battery monitoring. It features built-in Bluetooth connectivity, a VE.Direct communication port, and an auxiliary input that can be configured for second battery monitoring, midpoint voltage monitoring, or temperature sensing.
The SmartShunt is compatible with virtually all battery types, including Lithium (LiFePO4), AGM, Gel, and Flooded Lead-Acid batteries, making it suitable for a wide range of energy storage systems.
Key Features
- 500A / 50mV precision battery shunt
- Built-in Bluetooth Smart connectivity
- Monitoring via the VictronConnect app
- No separate display required
- Real-time battery monitoring
- State of Charge (SOC) calculation
- Remaining runtime (“Time-To-Go”) estimation
- Historical battery performance data
- VE.Direct communication port
- Compatible with Victron GX devices
- Auxiliary input for second battery voltage monitoring, battery temperature monitoring, and midpoint voltage monitoring
- Suitable for Lithium, AGM, Gel, and Flooded batteries
- Compact installation with minimal wiring
- High measurement accuracy
- 5-year Victron warranty
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | SmartShunt 500A/50mV |
| Part Number | SHU065150050 |
| Shunt Rating | 500A / 50mV |
| Supply Voltage Range | 6.5 – 70V DC |
| Battery Capacity Range | 1 – 9999Ah |
| Current Consumption | <1mA |
| Bluetooth | Built-In |
| Communication Port | VE.Direct |
| Auxiliary Input | Yes |
| Auxiliary Functions | Second Battery, Temperature, Midpoint Monitoring |
| Current Resolution | ±0.01A |
| Voltage Resolution | ±0.01V |
| State of Charge Resolution | ±0.1% |
| Current Measurement Accuracy | ±0.4% |
| Voltage Measurement Accuracy | ±0.3% |
| Operating Temperature | -40°C to +50°C |
| Protection Rating | IP21 |
| Shunt Terminal Size | M10 |
| Dimensions (H × W × D) | 46 × 120 × 54mm |
| Warranty | 5 Years |
Monitoring Functions
State of Charge Monitoring
The SmartShunt continuously calculates and displays battery voltage, charging and discharge current, power consumption (Watts), amp-hours consumed, battery state of charge, remaining runtime, and historical battery performance data — providing a far more accurate picture of battery health than voltage readings alone.
Bluetooth Smart Connectivity
Using the free VictronConnect app, users can monitor battery performance in real time, view state of charge, access historical battery data, configure battery settings, receive alarm notifications, and update firmware wirelessly. No separate display panel is required.
Auxiliary Monitoring Input
The auxiliary connection can be configured to monitor a starter battery, measure battery temperature, or monitor midpoint voltage in larger battery banks, making the SmartShunt suitable for advanced multi-battery installations.
Victron System Integration
The SmartShunt integrates seamlessly with the Victron ecosystem and can connect to Cerbo GX, Ekrano GX, Venus GX, Color Control GX, VRM Remote Monitoring Portal, SmartSolar Charge Controllers, MultiPlus Inverter/Chargers, and Quattro Inverter/Chargers. Using the VE.Direct port, battery data can be shared throughout the entire Victron system for enhanced monitoring and control.
What's Included
- Victron SmartShunt 500A/50mV

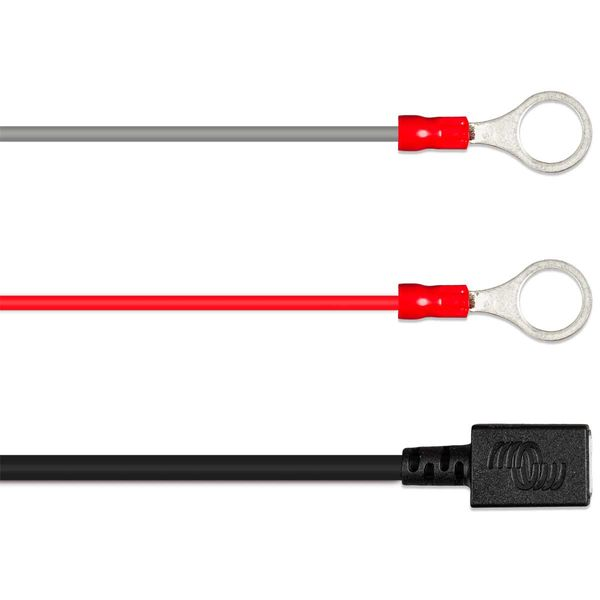

- Fused positive connection cable
- Auxiliary connection cable
- Installation instructions
- Mounting hardware
Ideal Applications
- Campervans and motorhomes
- Caravans
- Marine and boating systems
- Off-grid solar installations
- Lithium battery systems
- Renewable energy storage
- Backup power systems
- Commercial vehicles
- Telecommunications equipment
- Battery banks requiring accurate state-of-charge monitoring
Why Choose the Victron SmartShunt 500A?
The Victron SmartShunt 500A/50mV provides professional-grade battery monitoring in a compact, display-free design. With built-in Bluetooth, highly accurate state-of-charge calculations, historical performance tracking, and seamless integration with the Victron ecosystem, it offers a simple yet powerful solution for monitoring battery systems. Ideal for users who want all the functionality of a battery monitor without the need for a dedicated display, the SmartShunt delivers reliable battery insights that help maximise battery performance and lifespan.
