Solar Panel Victron 100/20 SmartSolar MPPT Charge Controller/Regula...
Solar Panel Victron 100/20 SmartSolar MPPT Charge Controller/Regulator (20A) is backordered and will ship as soon as it is back in stock.

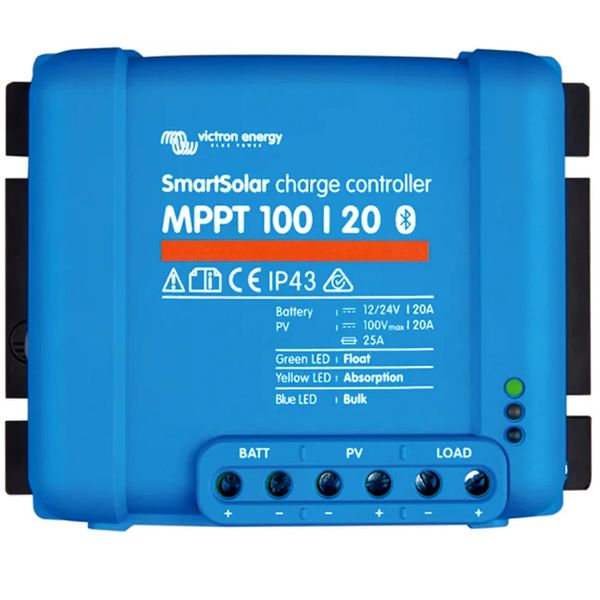

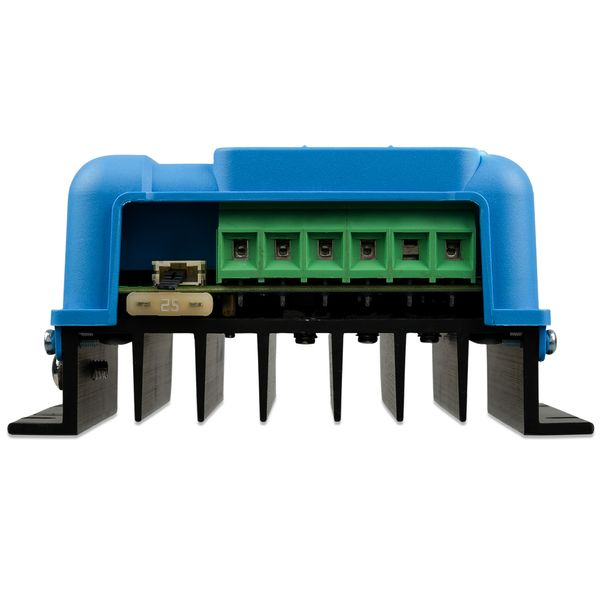

The Victron SmartSolar MPPT 100/20 is a compact and highly efficient solar charge controller designed to maximise energy harvest from solar panels while providing advanced battery charging and protection. Utilising Victron's ultra-fast Maximum Power Point Tracking (MPPT) technology, the controller continuously optimises solar output, delivering significantly higher charging efficiency than traditional PWM regulators, particularly during changing weather conditions and partial shading.
Featuring integrated Bluetooth Smart technology, the SmartSolar MPPT 100/20 allows users to monitor system performance, adjust settings, and perform firmware updates directly through the VictronConnect app on a smartphone, tablet, or computer. Suitable for 12V and 24V battery systems, it supports AGM, Gel, Flooded, and Lithium batteries, making it an excellent choice for campervans, motorhomes, caravans, boats, and small off-grid solar installations.
Key Features
- Ultra-fast Maximum Power Point Tracking (MPPT) technology
- Built-in Bluetooth Smart for wireless monitoring and configuration
- Automatic 12V / 24V battery voltage detection
- Maximum charging current of 20A
- Maximum PV open-circuit voltage of 100V
- Up to 98% conversion efficiency
- Intelligent multi-stage battery charging
- Supports AGM, Gel, Flooded and Lithium batteries
- Advanced recovery from partial shading conditions
- VE.Direct communication port for system integration
- Remote monitoring via VictronConnect app
- Fanless design with silent natural cooling
- Comprehensive electronic protection systems
- Easy installation and setup
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | SmartSolar MPPT 100/20 |
| Part Number | SCC110020160R |
| Charging Technology | MPPT |
| Battery Voltage | 12V / 24V Auto Select |
| Maximum Charge Current | 20A |
| Maximum PV Open Circuit Voltage | 100V |
| Maximum PV Short Circuit Current | 20A |
| Maximum PV Power (12V System) | 290W |
| Maximum PV Power (24V System) | 580W |
| Peak Efficiency | 98% |
| Communication | Bluetooth Smart & VE.Direct |
| Battery Types Supported | AGM, Gel, Flooded, Lithium |
| Protection Rating | IP43 (Electronics) |
| Dimensions | 100 x 113 x 40mm |
| Weight | 0.65kg |
| Operating Temperature | -30°C to +60°C |
| Cooling | Natural Convection (Fanless) |
| Warranty | 5 Years |
Protection Features
- PV reverse polarity protection
- Battery reverse polarity protection
- Output short-circuit protection
- Over-temperature protection
- Over-current protection
- Battery overcharge protection
- Reverse current protection to prevent night-time battery discharge
Ideal Applications
- Campervans and motorhomes
- Caravans
- Marine and boating electrical systems
- Small off-grid solar installations
- Garden offices and cabins
- Remote monitoring systems
- Battery charging and maintenance systems
- Portable solar power setups
Why Choose the SmartSolar MPPT 100/20?
The Victron SmartSolar MPPT 100/20 is an ideal solution for smaller solar installations requiring maximum efficiency and intelligent battery management. Its built-in Bluetooth connectivity eliminates the need for additional monitoring accessories, while the advanced MPPT algorithm ensures optimal solar harvesting in all weather conditions. Compact, reliable, and easy to configure, it delivers the performance and durability that Victron Energy products are known for, making it a popular choice for leisure, marine, and off-grid applications.
