Victron BlueSolar PWM Charge Controller DUO LCD & USB (12V/24V ...
Victron BlueSolar PWM Charge Controller DUO LCD & USB (12V/24V / 20A) is backordered and will ship as soon as it is back in stock.

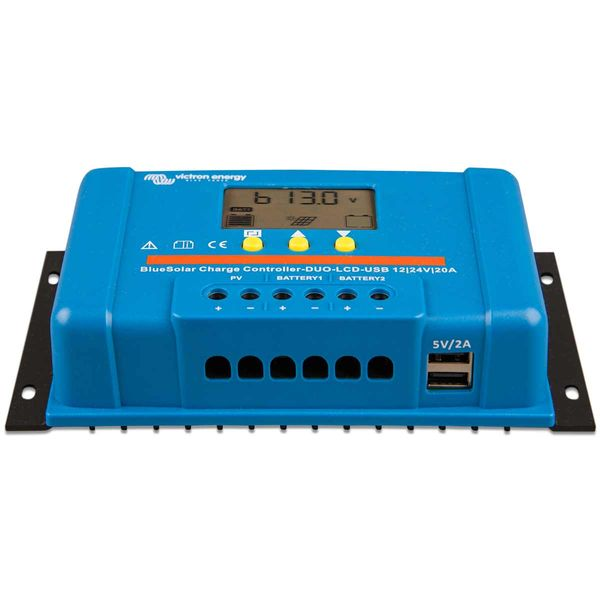

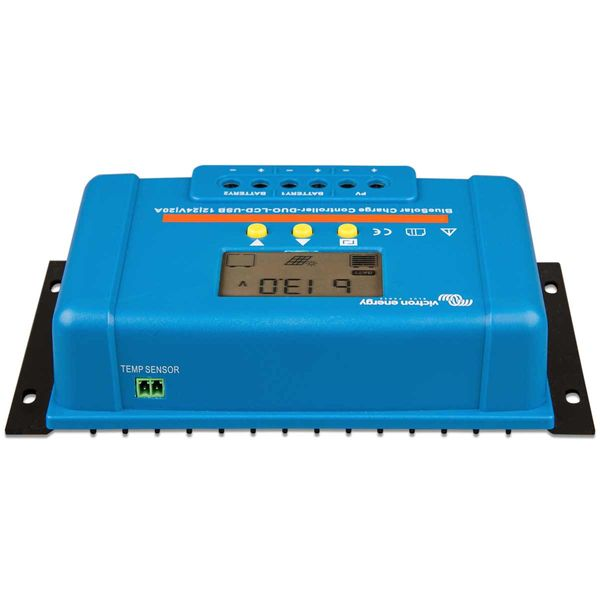

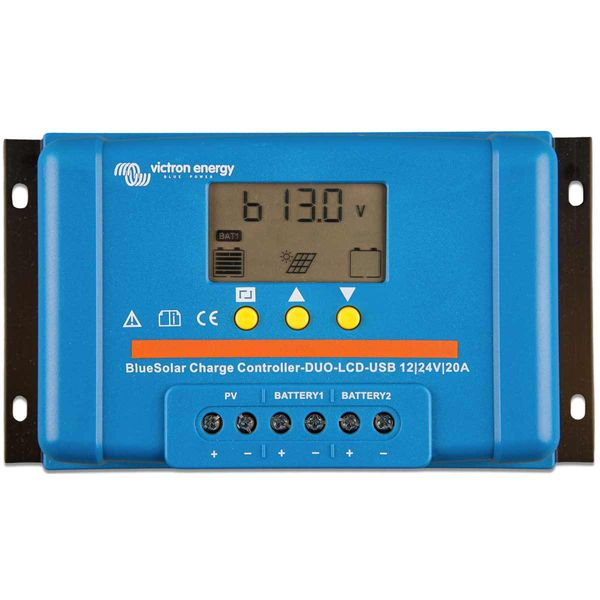

The Victron BlueSolar PWM DUO LCD & USB 20A Charge Controller is a versatile solar regulator designed to efficiently charge and maintain two separate battery banks from a single solar array. Ideal for campervans, motorhomes, caravans, boats, and off-grid systems, it automatically detects 12V or 24V battery systems and uses advanced PWM charging technology to maximise battery life and charging performance.
Featuring a built-in LCD display, users can easily monitor charging status, battery voltage, load conditions, and system settings. The DUO model allows configurable charging distribution between two batteries, making it perfect for charging both a leisure battery and a starter battery simultaneously. Two integrated USB outputs provide convenient charging for phones, tablets, and other USB-powered devices, while the included temperature sensor optimises charging according to battery temperature.
Key Features
- Charges two separate battery banks simultaneously
- Automatic 12V / 24V system voltage detection
- 20A maximum charging current
- Built-in LCD display for monitoring and setup
- Dual USB outputs (5V)
- External temperature sensor included
- Programmable charge current ratio between battery banks
- Three-stage PWM charging (Bulk, Absorption, Float)
- Fully programmable lighting/load control function
- Load output with low-voltage disconnect protection
- Overload and short-circuit protection
- Reverse polarity protection for solar panels and batteries
- Suitable for leisure, marine, and off-grid applications
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | BlueSolar PWM DUO LCD & USB |
| Part Number | SCC010020060 |
| Battery Voltage | 12V / 24V Auto Select |
| Maximum Charge Current | 20A |
| Battery Outputs | 2 Separate Outputs |
| Charging Method | PWM, 3-Stage |
| Maximum PV Open Circuit Voltage | 28V (12V system), 55V (24V system) |
| USB Outputs | 2 x 5V USB |
| Display | LCD Screen |
| Temperature Compensation | External Sensor Included |
| Self Consumption | <10mA |
| Dimensions | 153 x 76 x 37mm |
| Weight | Approx. 180g |
| Protection | Overload, Short Circuit, Reverse Polarity |
| Warranty | 5 Years (Victron Standard) |
Ideal Applications
- Campervans and motorhomes
- Caravans
- Marine and boating installations
- Off-grid cabins
- Dual-battery leisure systems
- Solar-powered lighting systems
- Remote monitoring and backup power systems
The Victron BlueSolar PWM DUO 20A offers an affordable and reliable solution for managing dual battery banks, combining intelligent charging, comprehensive protection features, and the renowned reliability of Victron Energy products.
