Victron Cyrix Battery Combiner Relay VSR (12V & 24V / 120A)
Victron Cyrix Battery Combiner Relay VSR (12V & 24V / 120A) is backordered and will ship as soon as it is back in stock.

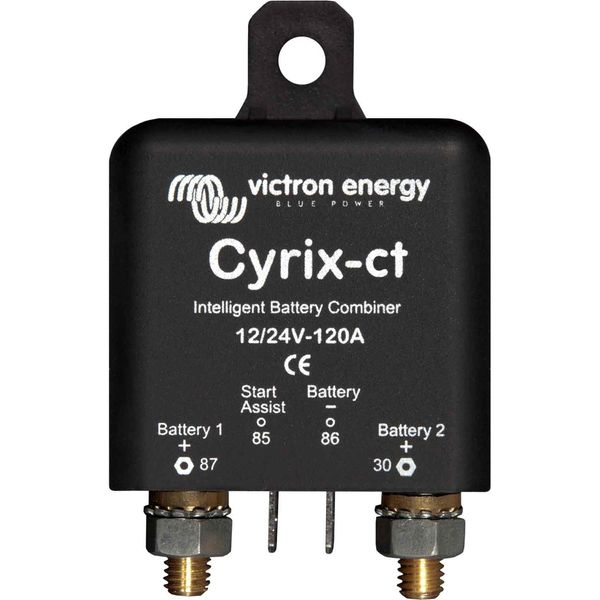

The Victron Cyrix-ct 12/24V 120A Battery Combiner Relay is an intelligent voltage-sensitive relay (VSR) designed to automatically connect and disconnect battery banks based on voltage levels. Ideal for dual-battery systems in campervans, motorhomes, caravans, boats, and off-grid installations, the Cyrix ensures efficient charging of multiple batteries from a single charging source without the voltage drop associated with traditional diode isolators.
Unlike conventional split-charge systems, the Cyrix continuously monitors battery voltage and intelligently connects battery banks when charging is detected. Once charging ceases and battery voltage falls, the relay automatically disconnects the batteries, helping to protect the starter battery from accidental discharge while ensuring maximum charging efficiency.
Suitable for both 12V and 24V systems, the Cyrix-ct 120A offers a simple, reliable, and highly efficient solution for managing multiple battery banks in mobile and marine power systems.
Key Features
- Intelligent voltage-sensitive battery combiner relay
- Automatically connects and disconnects battery banks
- Suitable for both 12V and 24V systems
- Continuous current rating of 120A
- No voltage drop unlike traditional diode isolators
- Prioritises charging of the starter battery before connecting auxiliary batteries
- Bi-directional voltage sensing
- Emergency parallel start function
- Fully automatic operation
- Low power consumption
- Compact and robust design
- Suitable for leisure, marine, and off-grid applications
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | Cyrix-ct 12/24V 120A |
| Part Number | CYR010120011 |
| System Voltage | 12V / 24V Auto Detect |
| Continuous Current Rating | 120A |
| Peak Current (5 Seconds) | 180A |
| Peak Current (1 Second) | 240A |
| Connect Voltage (12V System) | Approx. 13.0V to 13.8V |
| Disconnect Voltage (12V System) | Approx. 11.0V to 12.8V |
| Connect Voltage (24V System) | Approx. 26.0V to 27.6V |
| Disconnect Voltage (24V System) | Approx. 22.0V to 25.7V |
| Power Consumption (Open) | <4mA |
| Power Consumption (Closed) | Approx. 12mA |
| Dimensions (H x W x D) | 46 x 46 x 80mm |
| Weight | Approx. 110g |
| Protection Rating | IP54 |
| Operating Temperature | -40°C to +50°C |
| Warranty | 5 Years |
How It Works
The Cyrix monitors the voltage of connected batteries:
- When a charging source such as an alternator, solar charger, battery charger, or inverter/charger raises the battery voltage above a preset threshold, the relay automatically closes and combines the battery banks.
- Both batteries are then charged simultaneously.
- When charging stops and voltage falls below the disconnect threshold, the relay automatically opens, isolating the batteries and preventing unwanted discharge.
This intelligent operation ensures optimal battery charging while protecting critical starter batteries.
Ideal Applications
- Campervans and motorhomes
- Caravans
- Marine and boating electrical systems
- 4x4 and overland vehicles
- Dual-battery charging systems
- Solar-powered battery banks
- Off-grid power installations
- Backup battery systems
Why Choose the Victron Cyrix-ct 120A?
The Victron Cyrix-ct 120A offers a smarter and more efficient alternative to traditional split-charge relays and diode battery isolators. By automatically managing battery connections based on voltage levels, it maximises charging efficiency, eliminates unnecessary voltage loss, and protects battery banks from unwanted discharge. Compact, reliable, and easy to install, it is a trusted solution for dual-battery systems across leisure, marine, and off-grid applications.
